LB1860M-TLM-E

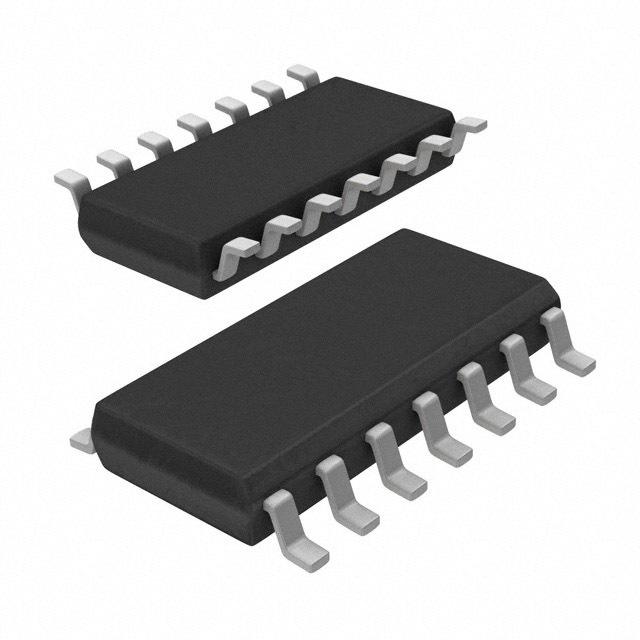

2-Phase Half-Wave Variable Speed Fan Motor Driver, SOIC14 W / MFP14S 225 mil, 1000-REEL

The LB1860M is driver for two-phase unipolar drive DC brushless fan motors. They have functions such as driving, lock protection, restart and speed control.

Features

---

 |

.

Two-speed mode select function requiring less external component additions

.

Motor lock protection and automatic return circuit built in

.

Output transistors :

Output current IO = 1.5 A, output circuit protection Zener diodes M-Vz = 57 V

.

Built-in thermal shutdown circuit

.

Built-in rotation detect function

.

12 V or 24 V power supply by changing an external resistor

.

Connectable direct to a Hall element
